24 Inch 4 Burner

Feature:

• Gas Stove With 4 Burners: 1x 10,500 BTU + 2x 6,414 BTU + 1x 3,071 BTU

• NG/LPG Convertible & Electric Ignition

• Black Tempered Glass Surface

• Child protection lock

• Featuring a thermocouple flame-out failure system (FFD)

• Built-in Gas Cooktop 24 Inch: Product size: 22.99" W x 20.08" L x 3.93"H, Cut out size: 21.73" Wx 18.5" L.

Specification:

Product Size:Height:3.9 inch

Depth:20.08 inch

Width:22.99 inch

Cut Out Size:Height:3.9 inch

Depth:18.5 inch

Width:21.73 inch

Part Number:GH003-244G

Item Weight:34.3 pounds

Product Dimensions:20 x 22.9 x 3.9 inches

Special Features:Flame-Out Protection

Burner type:Sealed

Heating Elements:4

Color:Black

Control Console:‎Knob

Voltage:‎120 Volts

Installation Type:Bulit-in

Fuel type:Dual Fuel

Material Type:Tempered Glass

Included Components:LPG Nozzles

Description:

Melt-proof Knobs

Melt-proof and anti-scalding bakelite knob controls, with child protection lock, need to press and rotate at the same time to ignite, preventing children from accidentally touching.

Powerful Burners

Made of high-quality material, this gas range assure you poweful and stable flames. Total 26,399 BTU to meet the cooking needs of the whole family.

Heavy-duty Cast Iron Grate

One-piece heavy cast iron grate, easy to assemble and remove, will not deformed. The unique eight-claw structure is stronger and more stable than the four-claw and six-claw grate, can support the pot firmly, avoid letting the pan slip off.

4 Burners Power

1 * 10,500 BTU

2 * 6,414 BTU

1 * 3,071 BTU

Easy to Clean

Black Tempered Glass Surface.

NG/LPG Convertible

Initial setting is for NG. Follow the steps below to replace LPG

1.Replace NG nozzles with LPG nozzles.

2.Replace NG elbow connector to LPG ones, please use sealing gasket.

Built-in Design

Compact and save spaces,prefect for modern kitchen

Installation of built-in gas cooktop

This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

Product Dimensions: 22.99" W x 20.08" L x 3.93"H

Cut out Dimensions: 21.73" Wx 18.5" L

For a correct installation, the following precautions must be followed:

The gas stove should be connected to the gas-supply by a registered installer. During installation it is essential to fit an approved gas tap to isolate the supply from the stove for the convenience of any subsequent removal or servicing.

Once the stove was installed, make sure all the connections are properly sealed, use a soapy water to test, never use flame.

Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness.

In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.

When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips, in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.

Note:DO NOT install the stove in a damp closed environment, because long-term moisture will cause rust in the stainless steel panel.

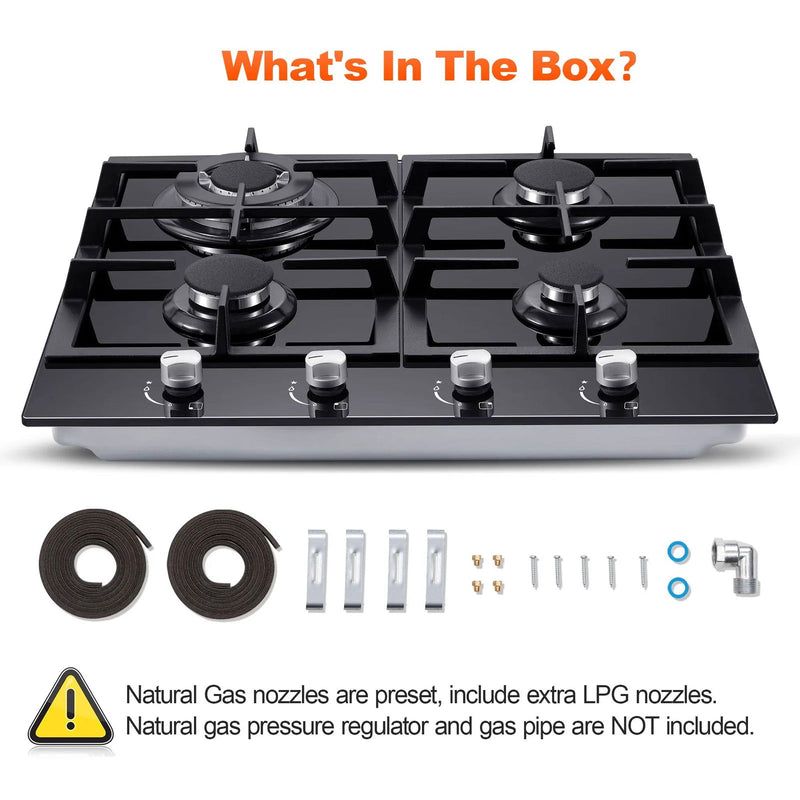

Package included:

24 inch Gas Cooktop with Wok Stand

Preset NG nozzles(extra 4 Propane nozzles)

1/2 NPT Connector and Elbow Connector with sealing rings

Sealing strip, Mounting brackets and screws

User Manual
